Robotic Total Stations in Marine Construction

The robotic total station (RTS) is the ultimate tool for nearshore precision. Marine total stations are pivotal where GNSS solutions become unreliable, such as extended sessions under bridges, alongside infrastructure, or anytime vertical precision is most critical. These scenarios, which can occur in dredging, pile driving, and structural placements, and can demand accuracy far exceeding standard GNSS tolerances.

Serving the US Since 1997

Top Trimble Marine Dealer

Critical Features for Vessel Positioning with Optical Sensors

Not all total stations are created equal. System latency and update rates are vital for marine-ready systems because a split-second delay can mean sizable position errors, even before you’re aware there’s a problem.

Key capabilities include:

Active target tracking

The system must stay locked onto a prism moving at high speeds and often pitching and rolling unpredictably.

High update rates

High update rates and minimal latencies in the millisecond range are critical. When tracking a target on a moving vessel, a single second of lag can result in positional errors of several feet.

Synchronization

The RTS must provide synchronized linear and angular measurements.

Intelligent search and re-lock

Marine environments are visually busy. The total station needs to detect and automatically re-acquire a blocked or lost target quickly.

The system must stay locked onto a prism moving at high speeds and often pitching and rolling unpredictably.

High update rates and minimal latencies in the millisecond range are critical. When tracking a target on a moving vessel, a single second of lag can result in positional errors of several feet.

The RTS must provide synchronized linear and angular measurements.

Marine environments are visually busy. The total station needs to detect and automatically re-acquire a blocked or lost target quickly.

Integrating Trimble Systems for On-the-Water Success

Measutronics’ decades of experience are built around seamless integration, fusing Trimble’s best-in-class systems into the workflow of marine contractors, engineers, and surveyors. A Trimble RTS offers more than an isolated instrument because it is part of a larger connected site where data flows in real time from the field to project management.

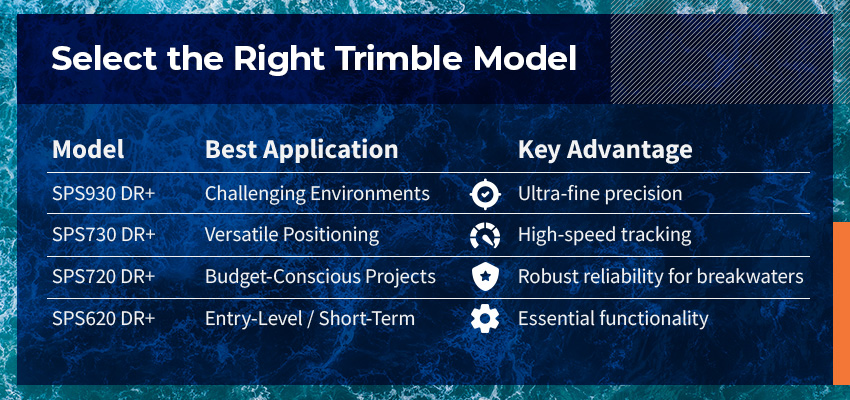

Unique Trimble technology offers high position update rates, synchronized angle and distance measurements, and low latency. Choosing the right technology starts with your project’s demands. Here’s how each model fits a different need:

Vessel Tracking with Robotic Total Stations

Marine total stations fill the gap when GNSS is denied, such as when satellite lock fails from interference from cranes, high-rise spans, or complex urban marine environments.

Vessel tracking with RTS ensures pinpoint precision, especially in tasks like positioning or aligning the installation of piles and templates.

Ultimately, for critical marine construction milestones, only RTS delivers the millimeter-level results needed to validate work, document compliance, and pass inspections.

SPS930 DR+ for challenging marine environments

When marine projects push the limits, such as vessel tracking under bridges, near tall cranes, or in rapidly changing conditions, the Trimble SPS930 DR+ leads the way. This station delivers ultra-fine precision and superior tracking with an extended range.

SPS730 DR+ for marine application versatility

The Trimble SPS730 DR+ balances performance and flexibility for a broad spectrum of vessel positioning and layout tasks. This solution offers high-speed tracking and active synchronization, working with sensors and marine field controllers to provide live feedback to your digital workflows.

SPS720 DR+ for streamlined surveying and construction

The Trimble SPS720 DR+ is designed for projects where robust performance and reliability must meet a budget. The station is engineered to withstand marine weather, spray, and operational rigor, making it suitable for breakwater, jetty builds, or when working as backup tracking vessels on projects supported by primary GNSS.

SPS620 DR+ for entry-level marine readiness

For budget or smaller projects, the Trimble SPS620 DR+ offers essential functionality with robust Marine DNA. This station is best for short-term projects, equipment rental, or as a backup for larger jobs.

Each of the Trimble solutions we offer features:

Full robotic operations.
Dual-axis compensation and servo-assisted fine control for tracking vessels in all conditions.
High-quality optics and fast, reliable autolock and quick search.
Seamless integration with Trimble’s hardware ecosystem.
Full compatibility with major hydrographic and marine construction software platforms, including HYPACK.

Why Partner with a Specialized Marine Systems Integrator?

There’s a world of difference between a generic survey supplier and a dedicated marine integrator. At Measutronics, we recognize that equipment alone will not keep you afloat. You need reliable support and training. We also offer project startup support for those with less experience.

With us, you can access expert support, from troubleshooting integration to hands-on training, so your team can get answers fast, whether on-site or remote. We also bring advanced diagnostics, field repairs, and proactive maintenance planning for mission-critical uptime. Our experts tailor your setup to vessel-specific project needs and compliance standards, ensuring your gear performs when the pressure is on.

Upgrade Your Marine Surveying Capabilities

Precision matters most when the job is unpredictable, and the margin for error is measured in mere millimeters. Contact Measutronics today for a purpose-built positioning solution that fits your operation, integrates with your workflow, and comes with the knowledge and support to ensure your project’s success.
