Fast to Deploy. Easy to Use.

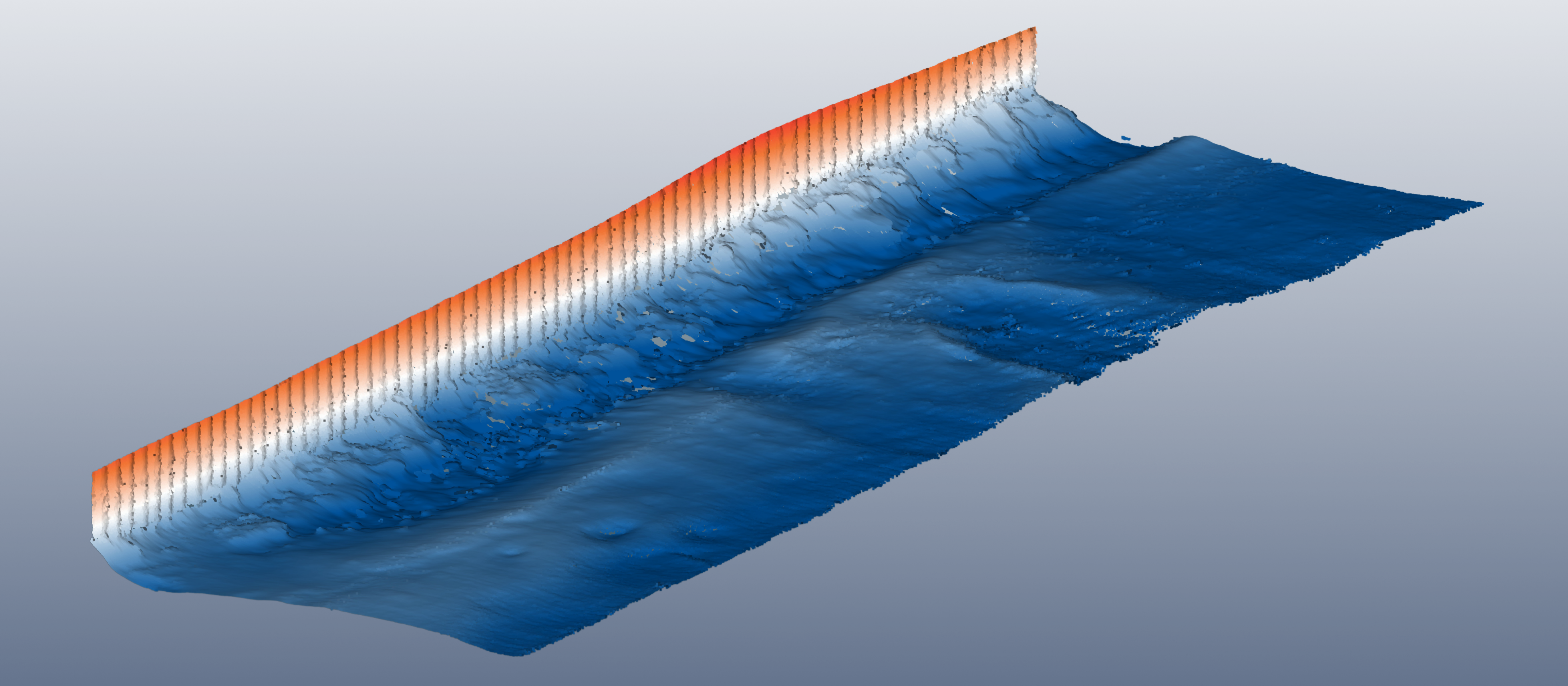

Introducing our innovative multibeam sonar solution, tailored for dredging, marine construction, and surveying. This economical system is perfect for bathymetric, hydrographic, and construction/dredging “as built” applications, offering essential features without the costly extras. By simplifying functionality and minimizing points of failure, we’ve created an affordable, high-quality tool that allows you to start your marine projects with confidence.
Single pole mount with mounting bracket + integrated IMU speed up mobilization
Preset offsets (with PORTUS option) help eliminate measure-up errors
Compact case is airline-friendly for USV and Vessels of Opportunity
Integrated Performance by Industry Leaders
Tap a category to view essential details.
Acoustics by NORBIT
- 400/550 kHz
- Up to 50 Hz ping rate
- Selectable 256 or 512 equiangular/equidistant beams
- 1.4° × 1.0° beamwidth
- Roll stabilization
- 200 m range
- 130° swath coverage
- <1 cm range resolution
- Side scan data output
Ready to Work, Right Out of the Case
The following items are included in the box:

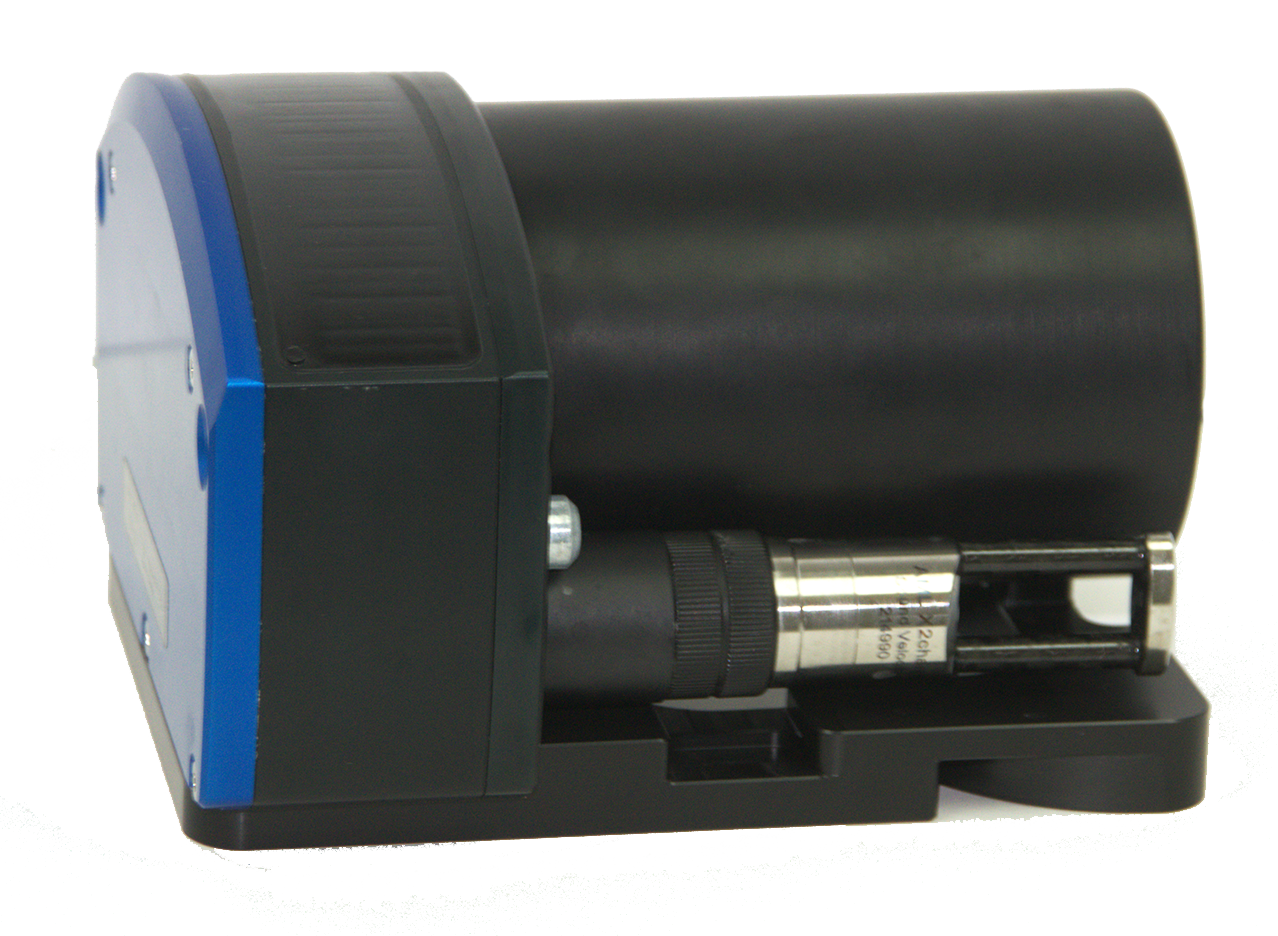

Bathymetric Sonar Transducer
Selectable 400 or 550 kHz sonar transducer for precise bathymetric data collection

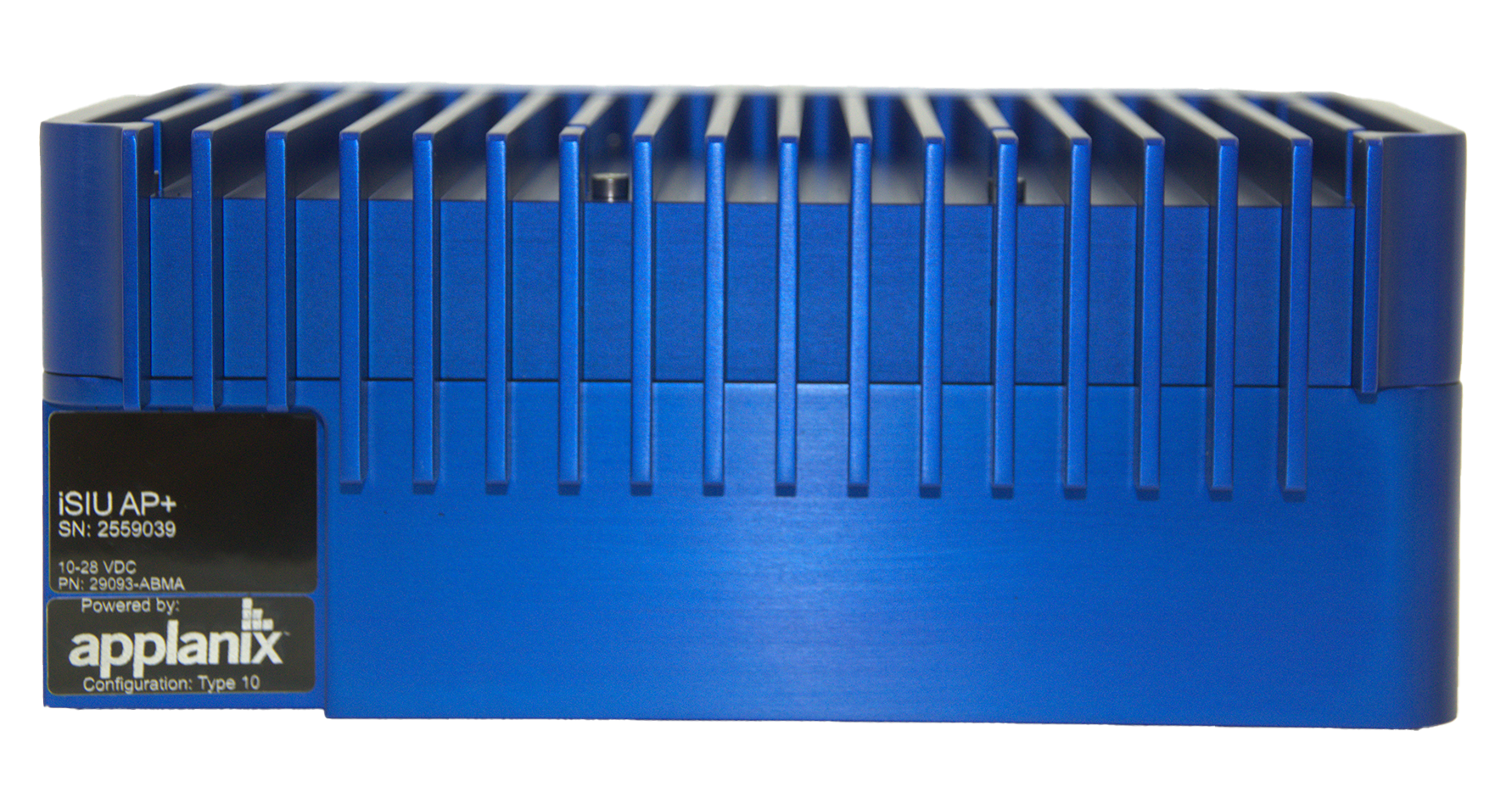

Integrated Inertial Motion Unit (IMU)
Applanix AP18+ for stable attitude and low drift performance

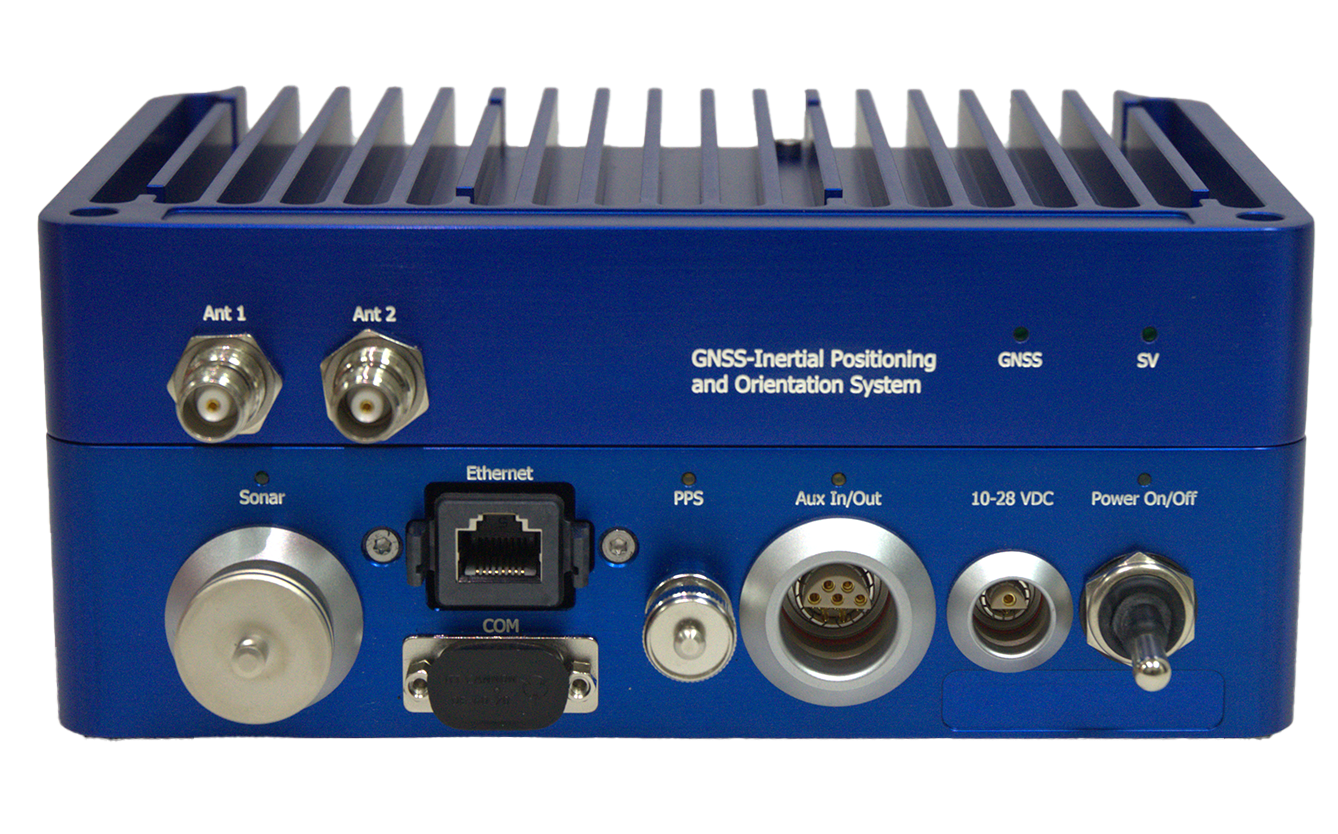

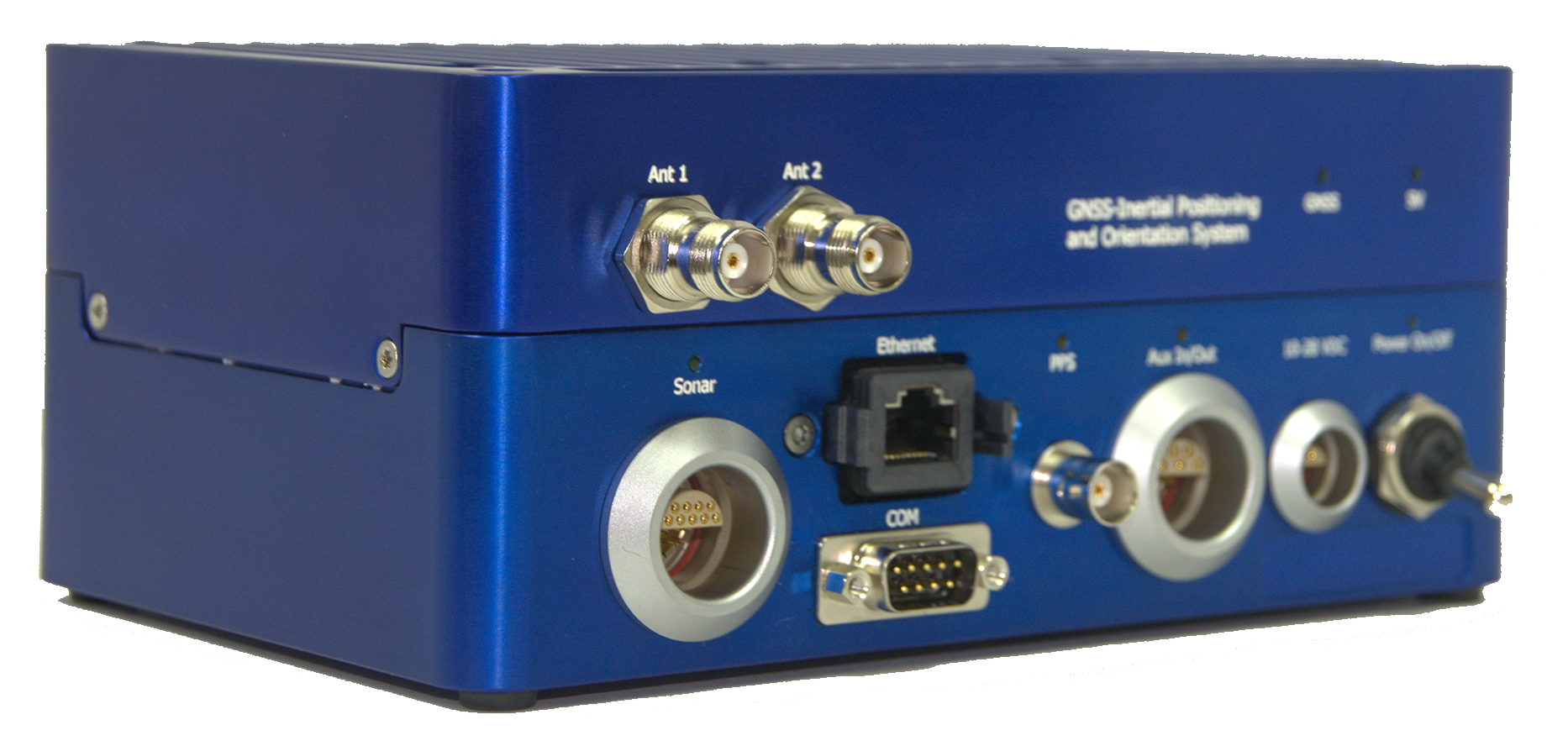

SIU-I-NAV Topside Interface Box
Includes US power supply, DC power cable, LAN, and USB-serial cables for streamlined connection
Custom Measutronics Graphical User Interface (GUI)
Designed for ease of use, simplifying workflows and optimizing performance
GNSS Antennas and Cables
Includes 2 Trimble 540AP antennas and 2 × 10 m cables for precise dual-antenna heading
Sonar Interface Cable
8-meter cable for fast and reliable sonar-to-system connectivity – only 1 cable required
Sonar Mounted Sound Velocity Profiler
AML X2change for accurate beam-forming sound velocity measurement

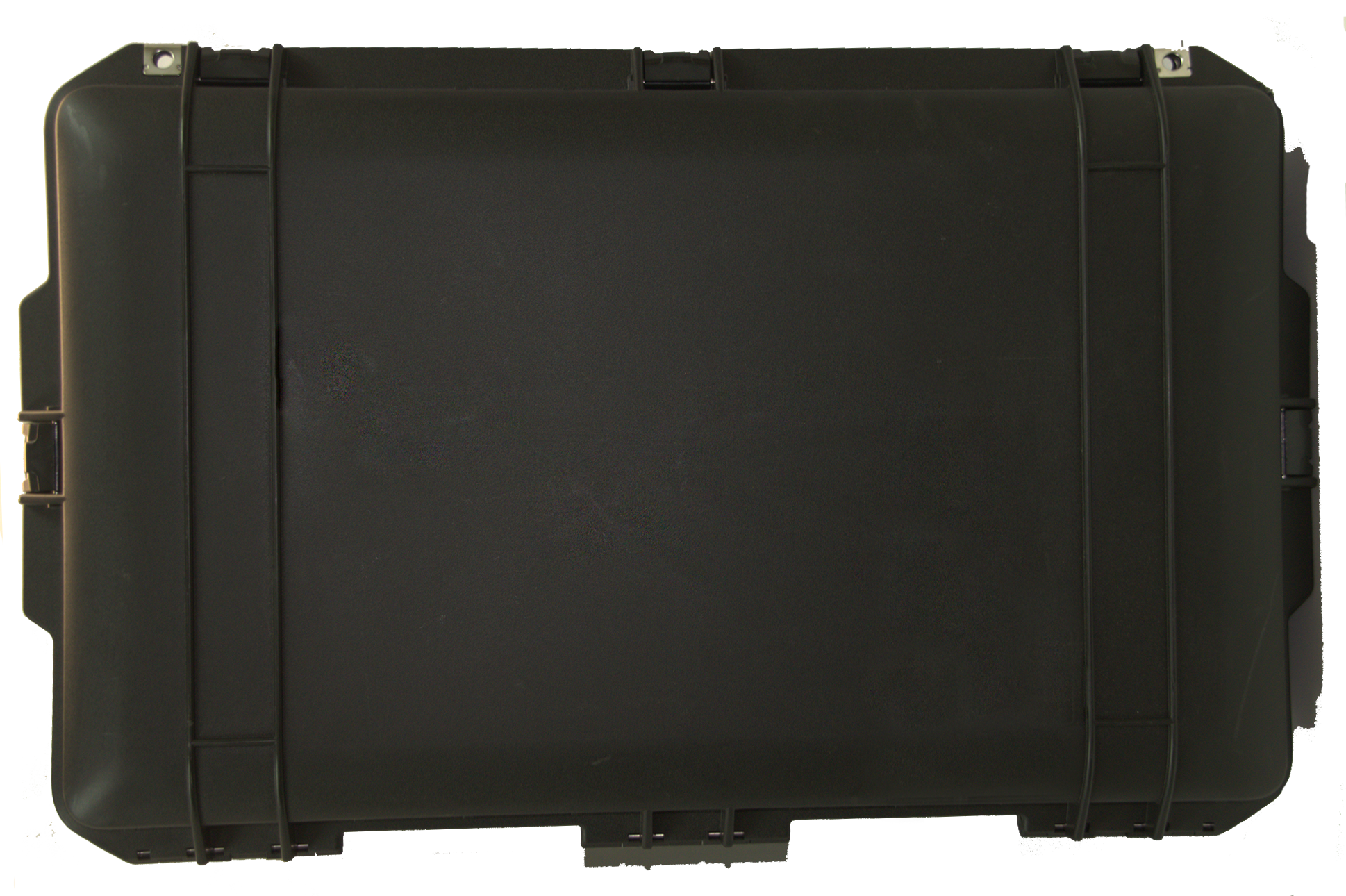

Custom Pelican Case
Foam-fitted, checked-baggage compatible case for secure and safe transport
Digital Manual
Complete instructions for installation, setup, and operations
Built for Marine Surveying
Dredging
Validate 3D surfaces and eliminate “as-built” surprises
Construction “As-Builts”
Document progress and confirm design conformance quickly
USV & Small Craft
Small form factor and low power requirements ideal for USVs and small vessels
Vessel of Opportunity
Plug and play components, along with PORTUS pole and accompanying mounting bracket, facilitate installations on vessels of opportunity

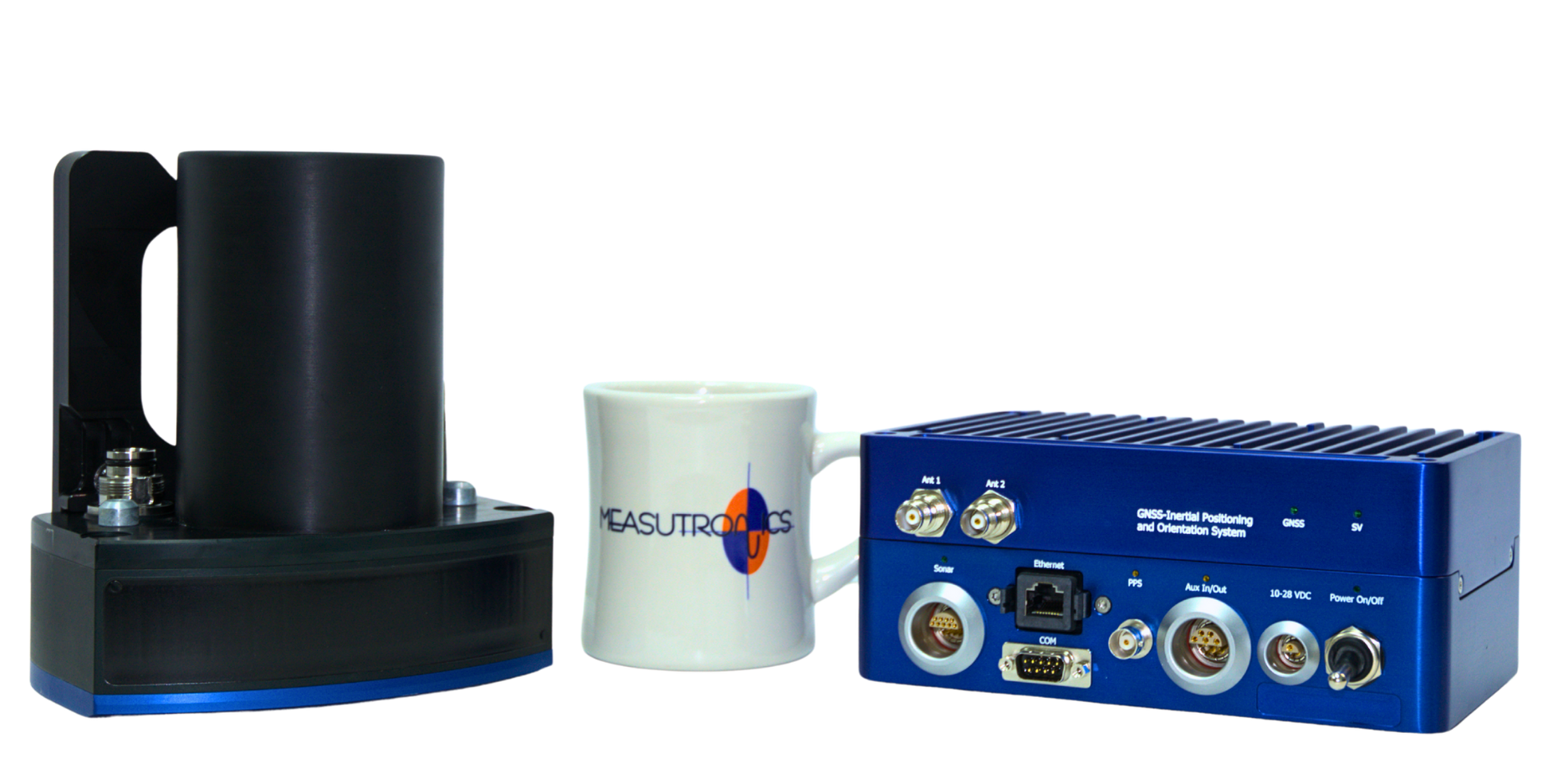

Take a Closer Look at INSonar
Your INSonar Questions, Answered
What problems does INSonar solve?
Faster mobilization, simplified calibration, fewer measure-up errors (with PORTUS option), lower maintenance, and operator-friendly workflows
Is it suitable for small vessels and USVs?
Yes. The small form factor and airline-ready case make it ideal for USVs and vessel-of-opportunity installs
What software is compatible with INSonar?
INSonar is supported by all the major multibeam sonar packages.
Who do I contact for pricing or a demo?
Measutronics handles sales, training, installation, and support
All of the essentials provided by industry leaders: Acoustics by NORBIT, inertials by Applanix, positioning by Trimble, and service and support by Measutronics.
